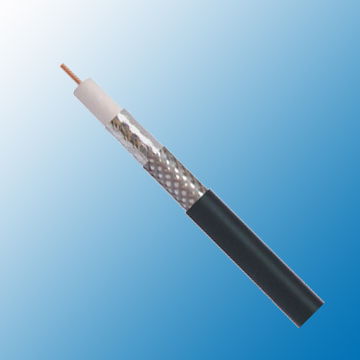

RG 6 CS
Construction
Inner conductor |
Copper clad steel(CCS) |
0.72 mm |
Dielectric |
Low density PE |
Φ4.70 ± 0.10 mm |
Outer conductor(shield 1) |
Silver plated copper |
168 x 0.13 mm |
Shield coverage |
|
97% |
Outer conductor(shield 2) |
Plain copper |
168 x 0.13 mm |
Shield coverage |
|
95% |
Sheath |
PVC or LSZH |
Φ8.50 ± 0.10 mm |
Electrical & Mechanical Characteristics
Impedance |
75±5 Ohm |
Nominal capacitance |
67 pF/m |
Velocity of propagation |
66% |
Insulation resistance |
>2000 Mohm.Km |
Inner conductor resistance |
106 Ohm/Km |
Outer conductor resistance |
5 Ohm/Km |
Operating temperature range |
-30 °C - +70 °C |
Copper weight |
50.5 Kg/Km |
Cable weight (approx.) |
112.4 Kg/Km |
Screening effectiveness |
>70 dB |
Attenuation
Frequency(MHz) 50 |
Attenuation (dB/100 m) 5.8 |
Attenuation (dB/100 m) 1.77 |
100 |
8.5 |
2.59 |
200 |
12.5 |
3.81 |
400 |
18 |
5.49 |
500 |
20.3 |
6.19 |
600 |
22.6 |
6.89 |
860 |
27.5 |
8.38 |
1000 |
30.4 |
9.27 |
Return Loss
30-300 MHz |
>28dB |
300-600 MHz |
>24dB |
600-900 MHz |
>22dB |
